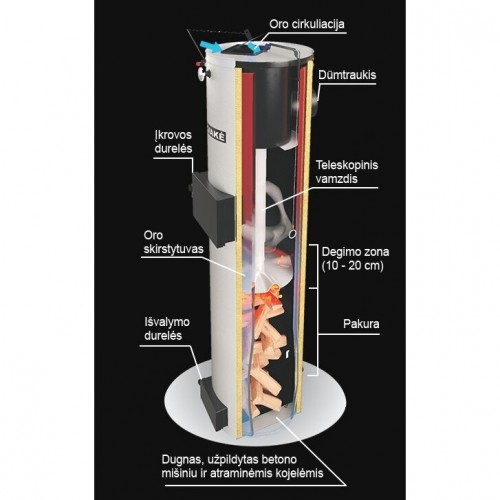

Solid fuel boiler for heating individual residential and industrial premises. The cylindrical boiler is fired with wood or mixtures of wood and biofuel. The boiler features a unique solid fuel combustion method, where only the top 10-20 cm of the fuel burns, not the entire load in the firebox. The ash accumulation does not interfere with the combustion process, so it is sufficient to clean the ash 2-3 times per month
CANDLE 35 kW
€1,590.00
Solid fuel boiler for heating individual residential and industrial premises. The cylindrical boiler is fired with wood or mixtures of wood and biofuel. The boiler features a unique solid fuel combustion method, where only the top 10-20 cm of the fuel burns, not the entire load in the firebox. The ash accumulation does not interfere with the combustion process, so it is sufficient to clean the ash 2-3 times per month
Saugus Atsiskaitymas
El. Bankininkystė, Visa - Mastercard ar Pristatymo Metu.
Nemokamas Pristatymas
Nemokamas prekių pristatymas visiems perkantiems kieto kuro katilus!
Nemokamas Grąžinimas
Suteikiame 14 dienų pinigų grąžinimo garantiją.
| Power | kW | 35 |
| Power range | KW | 10-35 |
| Boiler water volume | l | 52 |
| Loading height | mm | 1100 |
| Load diameter | mm | 600 |
| Load volume | l | 320 |
| Boiler height (max) | mm | 2070 |
| Boiler diameter | mm | 700 |
| Boiler weight, net | kg | 315 |
| Dimensions of the flue | mm | 159 |
| Distance from the base to the centre of the flue outlet | mm | 1700 |
| Diameter of water outlets | mm | 2" |
| Working water pressure in the system | kpa (kg/cm²) | 180 (1,8) |
| Maximum boiler temperature | C° | 90 |
| Stack draft (minimum) | Pa | 21 |
| Recommended length of firewood | mm | 480-550 |
| Recommended wood moisture content | % | up to 20 |
| Recommended thickness of firewood | mm | 50-100 |
Other solid fuel boiler characteristics:
- when optimally set up, the boiler can run for up to 24 hours...even longer!;
- the air draft regulator automatically regulates the boiler water temperature;
- the possibility of fitting the TECH BOX car kit;
- ash removal is only necessary 2-3 times a month;
- the bottom is filled with concrete mix with adjustable support legs;
- the inner wall of the heat exchanger is made of 4 mm thick steel;
- large and extremely secure door;
- convenient pull handle for the air distributor;
- although the height of the boiler is impressive, it takes up very little space in the boiler room;
- transport possible in horizontal and vertical positions;
- includes: safety valve 1.8bar; air draft regulator; thermometer; handy ash collection box; cleaning tools.
--
14 Items
Data sheet
- Power range, kW
- 10-35
- Boiler water volume, l
- 52
- Load volume, l
- 320
- Boiler height (max), mm
- 2070
- Boiler diameter, mm
- 700
- Boiler weight, net kg
- 315
- Distance from the base to the centre of the flue outlet, mm
- 1700
